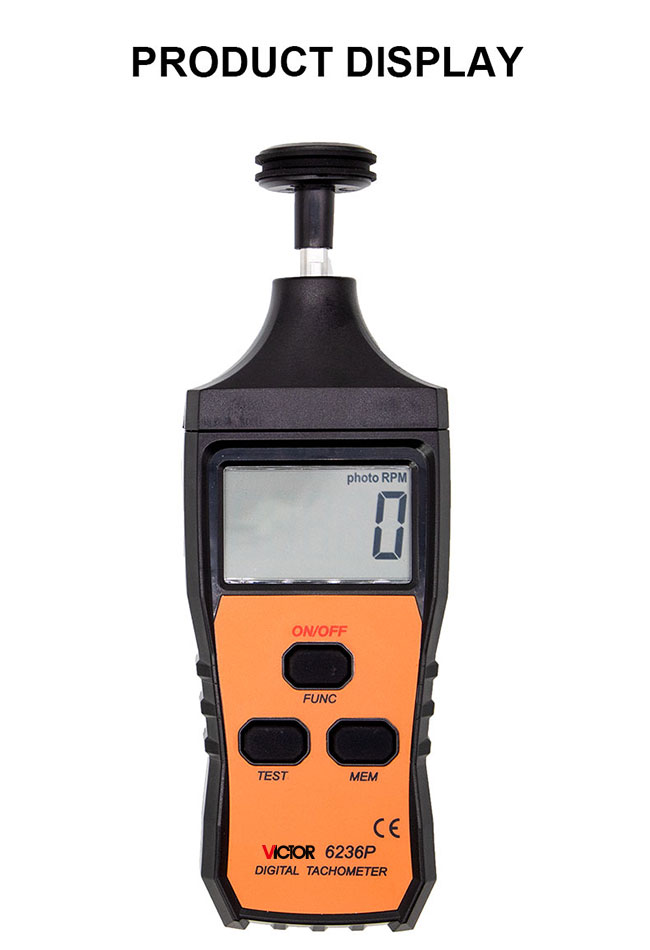

VICTOR 6236P Multifunction Environment Meters
VICTOR 6236P Digital Tachometer High Precision Tachometer Motorcycle 2 In 1 Contact And Non-Contact Tacometro Rpm For Chainsaws
Description
Characteristics
- Beautiful and elegant appearance design, convenient and comfortable to use;
- Wide measurement range, and high resolution;
- Single-chip microcomputer technology, photoelectric technology and anti-interference technology used, to accurately measure the rotation speed;
- Super large-size LCD, with clear reading;
- Automatically memorizing the measured maximum, minimum and the last displayed values;
- Low power indication when the battery voltage is lower than the specified value;
- Automatic off: Automatic off in about 15min when no key is operated.
Specifications
| Function | |
| Photoelectric type | △ |
| Contact type | △ |
| Contact line speed (metric system) | △ |
| Contact line speed (British system) | |
Display: 5-digit 16mm LCD
Accuracy: ± (0. 05%+5)
Range selection: Automatic range
Effective distance: 50mm-500mm
Dimension: 157mm*64mm*31mm
Power supply: 1*9V 6F22 batteries
Power consumption: Less than 40mA
Weight: About 200g (including batteries)
Measurement range:
10-99999 rpm for photoelectric rotation speed
1.0-19999 rpm for contact rotation speed
1.00-1999.9 m/min for contact line speed
Resolution:
Photoelectric rotation speed: 0.1rpm (2.5-999.99rpm)
1rpm (above 1000rpm)
Contact rotation speed: 0.1rpm (0.5-999.99rpm)
1rpm (above 1000rpm)
Contact line speed: 0.01m/min (0.05-99.999m/min)
0.1m/min (above 100m/min)
| Model | 6236P |
| Specification |
| Type | Laser + Contact Type |
| Display | 5 digits, LCD display |
| Range | Laser | 2.5~99999RPM |
| Surface Speed | (m/min):1.0~1999.9RPM |
| Contact | 1.0~19999RPM |
| Resolution | RPM | 0.1RPM |
| Surface Speed | (m/min):0.01m/min |
| Accuracy | ±0.05%+1 |
| Time Base | 4MHz quartz crystal |
| Features |
| Display | 5 digits, LCD display |
| Max. Display | 40000 |
| Low battery indication | √ |
| Data Store | √ |
| Auto Range | √ |
| Auto Power off | √ |
| Max /Min Value | √ |
| General Information |
| Power Supply | 4×1.5V AAA(Not Include) |
| Product Size | 157×65×30mm |
| Product Weight | Approx:200g |
| Standard Accessories | Manual, Battery(Not,include) Reflective tape; Contact wheel; Touch tips |
